Pneumatinis smūginis veržliasukis 1/2″ MINI | 680 Nm (YT-09513)

Aprašymas:
Gamintojas:
Mark

Yato

Symbol

YT-09513

Series

GRH

Application

industry, mechanical workshops, car services

Turnover

10000 min⁻¹

Max torque

680 Nm

Type of tool holder

driver

Quick connector size

standard

Type of impact mechanism

TWIN HAMMER

Rotation direction switch

Yes

Tool holder size

1/2″ (12.7 mm)

Max. working pressure

0.63 MPa

Required air flow

165 l/min

Inner diameter of the air supply hose

3/8″ (9.5 mm)

Air connection diameter (PT)

standard

Mass

1.55kg

Length

130mm

Housing material

aluminum

Set contents

pneumatic wrench, hose connector

Sound pressure

94.0 ± 3.0 dB(A)

Acoustic power

105.0 ± 3.0 dB(A)

Vibrations

9.0 ± 0.4 m/s²

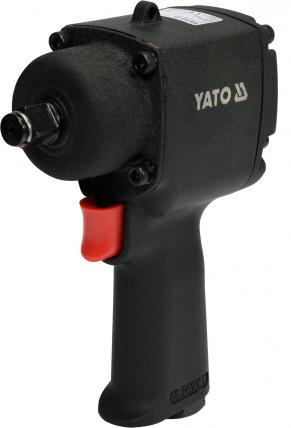

Professional 1/2″ MINI pneumatic wrench. Total length is 125mm, weight is 1.61 kg and the maximum torque is 680 Nm.

These parameters were achieved with an air consumption of 165 l/min. A TWIN HAMMER type impact mechanism was used.

The key is intended for use in mechanical workshops and car services.

Small size and low weight enable use in places with limited access.

three-stage torque regulator

aluminum body

​
