Pneumatinis kabiamūšis / viniamūšis | 25-40 mm / 10-50 mm (YT-09203)

Aprašymas:
Gamintojas:
Tinka kabės 71977, 71978, vinys 71980, 71981, 71982, 71983

Product description

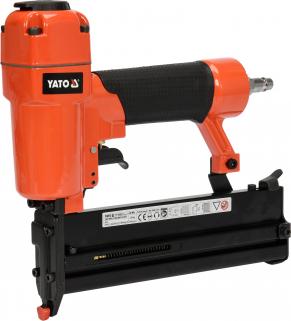

Professional pneumatic stapler for assembly and finishing works. Sticks with a spacing of 5.7 mm and lengths from 25-40 mm and flat nails with lengths of 10-10-50 mm. It has a rotary air outlet nozzle, 1 / 4BSP connection, a lug equipped with a fuse protecting against accidental staple application. The body is made of die-cast aluminum.

rotating 360 ° air outlet nozzle

protection against accidental switching on

sequential work mode

handle coated with rubber to increase the comfort of work

the ability to drive staples into hard wood and wood-based materials

easy replacement of staples

high speed of work

magazine capacity: 80 items – staples, 100 items – nails

Purpose / use

For joining different materials with staples or nails.

Usage

Press the nosepiece / unlocking the fuse / into the connected materials and press the device trigger.

Technical data

Index number YT-09203

EAN 5906083034381

Brand Yato

Gross weight (kg) 1.4470

Master Carton MC 10

Pal 120

LENGTH OF STAPLES: 25- 40MM, LENGTH OF NAILS: 10-50MM; OPERATING PRESSURE: 75-100PSI (5-7KG/CM2); WEIGHT: 1,46KG; DIMENSIONS: 250x55x240MM; LOAD CAPACITY: 80 STAPLES OR 100 NAILS; GERMAN TYPE CONNECTION- 1/4 BSP; 360 DEGREES EXHAUST DIRECTION; LIGHT DIE CAST BODY OF ALUMINIUM ALLOY; „CONTACT MODE” SAFETY SYSTEM
