Grandinės korpuso ir siurblio dantračio įrankių rinkinys | Ford 1,8 TDdi / TDCi (9387)

Aprašymas:
Gamintojas:
Description

for alignment of chain housing cover and for removing of high pressure pump sprocket

during works on high pressure pump chain, for example

tools are complementary for engine timing tool set BGS 8156

suitable for the following models:

Focus 1.8 TDCi (2004 – 2011)

engine codes: KKDA, KKDB

C-Max 1.8 TDCi (2003 – 2007)

engine codes: KKDA , BHPA, HCPA

Tourneo Connect 1.8 TDCi (2002 – 2013)

engine codes: HCPA, HCPB (2002 – 2006), RWPA, R2PA, P7PA, P9PA, R3PA (2006-2013), P9PB, RWPC (2009 – 2013)

Tourneo Connect 1.8 TDdi (2002 – 2006)

engine code: BHPA

Mondeo 1.8 TDCi (2007 – 2010)

engine codes: FFBA, QYBA, KHBA

Mondeo 1.8 TDCi ECOnetic (2008 – 2010)

engine code: KHBA

Transit Connect 1.8 TDCi (2002 – 2013)

engine codes: HCPA, HCPB (2002 – 2006), RWPA, P7PA, R2PA, P9PA, R3PA (2006 – 2013), P9PB, RWPC (2009 – 2013)

Transit Connect 1.8 TDdi (2002 – 2006)

engine code: BHPA

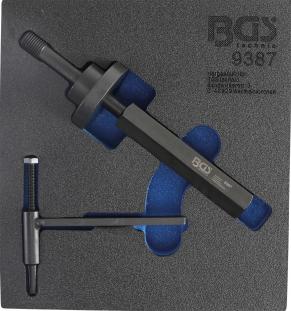

scope of delivery

chain housing cover alignment tool, to be used as OEM 303-652 (21-230)

high pressure pump sprocket disassembly tool, to be used as OEM 303-095 (23-067)

Technical data

Gross weight 730 g

To be used as OEM1 303-652 | 21-230 | 303-095 | 23-067 Ford
